◆Engine Type - 4-Stroke, Single Cylinder, Force Air-Cooled, Gasoline Engine.
▼PARTS LIST▼
➤ENGINW PARTS(GX-160)

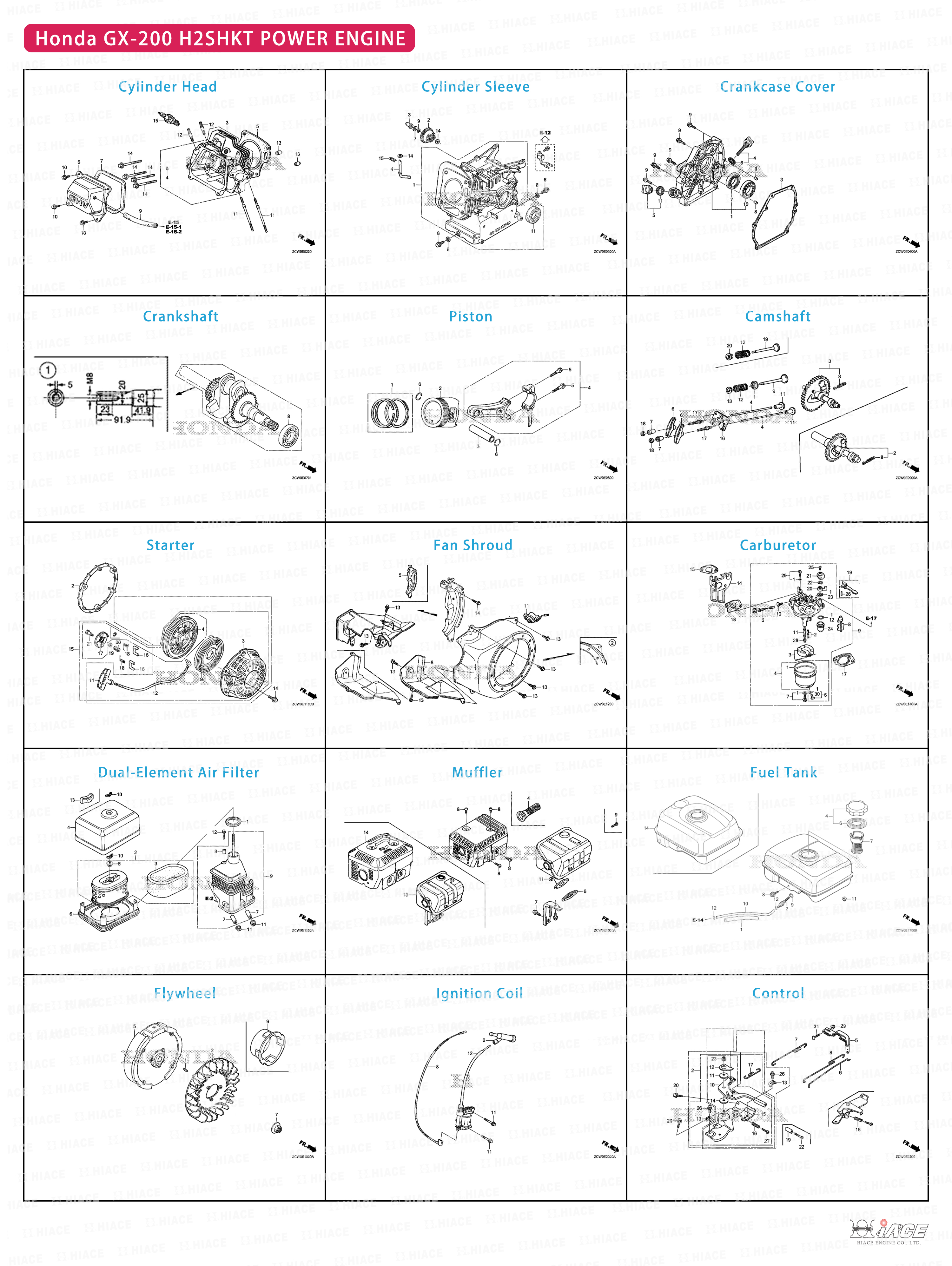

➤ENGINW PARTS(GX-200)
➤ENGINW PARTS(GP-160)
➤ENGINW PARTS(GP-200)
◆Engine Type - 4-Stroke, Single Cylinder, Force Air-Cooled, Gasoline Engine.
▼PARTS LIST▼
➤ENGINW PARTS(GX-160)
➤ENGINW PARTS(GX-200)
➤ENGINW PARTS(GP-160)
➤ENGINW PARTS(GP-200)
Model: | LMC-210H |
Engine Brand / Model: | GX-160 / GP-160 |
Diameter of Cylinder / Stroke: | 68 / 45 (mm) |
Engine Displacement: | 163 c.c. |
Max. Power(3600RPM): | 5.5PS |
Fuel Tank Capacity: | 3.1 Liter |
Oil Tank Capacity: | 0.58 L |
▼
Model: | LMC-210H |
Engine Brand / Model: | GX-200 / GP-200 |
Diameter of Cylinder / Stroke: | 68 / 54 (mm) |
Engine Displacement: | 196 c.c. |
Max. Power(3600RPM): | GX-200 5.8PS |
GP-200 6.5PS | |
Fuel Tank Capacity: | 3.1 Liter |
Oil Tank Capacity: | 0.58 L |
▼
Deck Material: | Steel |
Blade Transmission: | Clutch Gear Case |
Cutting Width(mm): | 530mm |
Cutting Height: | 10 Level / 6-60mm |
Tire: | FRONTΦ17mm*210mm |
REARΦ1/2inch*360mm | |
Blade Type: | 4 Swing Blades |
